WX6.5-4PS ultra-miniature capsule slip ring. Gold-gold contact realizes stable transmission of video and control signals, military-grade super-hard gold plating resists frequent rotation wear, small and stable resistance fluctuation, ensuring stable operation of equipment such as PTZ cameras and rotating advertising screens around the clock, and is the first choice for slip rings for security and commercial display equipment.
product features
1. 4-way 1A, outer diameter 6.5mm, suitable for various small space occasions.
2. 0.058N·m micro torque, easy rotation without jamming.
3. Gold-gold contact points to ensure more stable current and signal transmission.
4. Flangeless design, higher space utilization.
parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 300VCA@50Hz,60s | |
| Insulation resistance | ≥300MΩ/300VDC | |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30# Teflon wire |
| Wire length | Rotor 150mm; stator 200mm (adjustable as required) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP41 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 500,000 rpm |

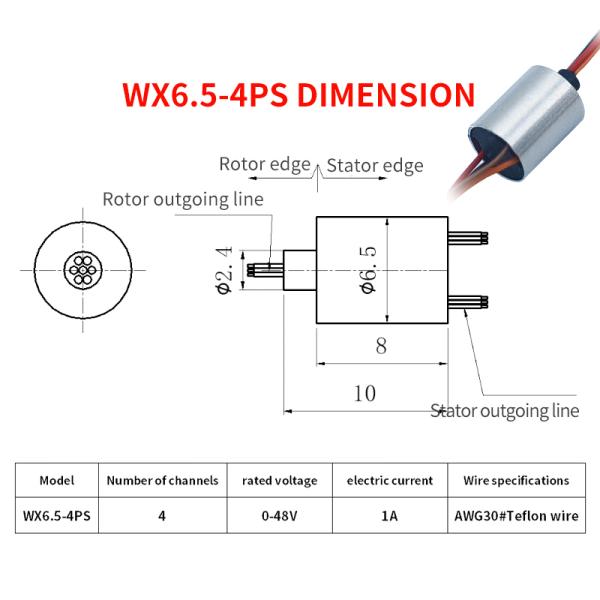

product size drawing

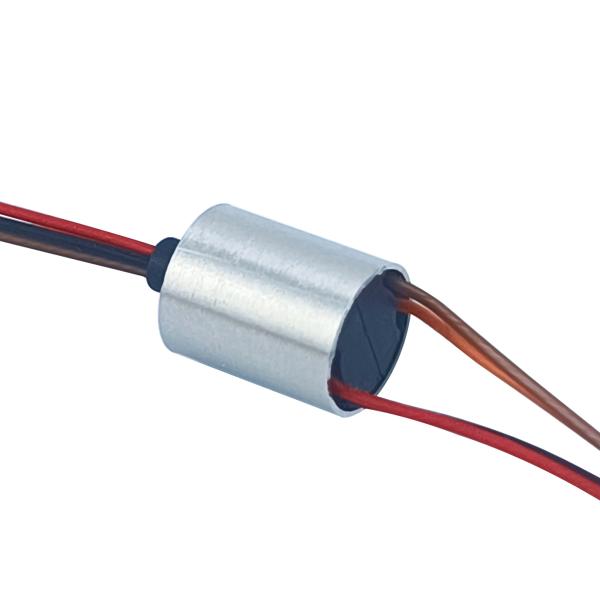

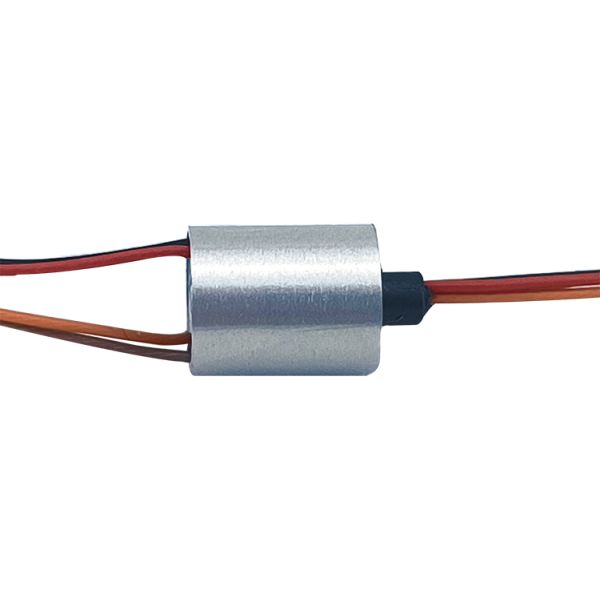

Product Pictures
Application
WX6.5-4PS micro capsule slip ring is mainly used in equipment with narrow installation space requirements, such as drones, stabilizers, aircraft models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments, electric toys, etc.
