F-WX12-6P05 6-way 5A low-power rotary cap-type slip ring. 1.3mm ultra-thin flange frees up 60% of equipment space, AWG22# Teflon wire supports 3D stereo wiring, helping to achieve micro-robot joint signal/power synchronous rotation.
F-WX12-6P05 low-power rotary cap-type slip ring product features:
1. Engineering plastic protection: PBT material is used, which can withstand high temperature of 150℃.
2. Independent transmission channel: Independent channel design, each channel can independently transmit current, analog signal, audio signal, digital signal, etc.
3. Low resistance: product insulation resistance ≥500MΩ/300VDC.
4. Compact space solution: 12.4mm outer diameter, requiring smaller installation space.
5. Microcurrent optimization: contact resistance <20mΩ, making the signal transmission more stable.
F-WX12-6P05 low-power rotary cap-type slip ring Performance parameters
| Parameter name | Parameter Value |
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～240VDC/VAC |
| Wire Specifications | 22AWG Teflon wire |
| Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |
F-WX12-6P05 low-power rotary cap-type slip ring Product Dimensions

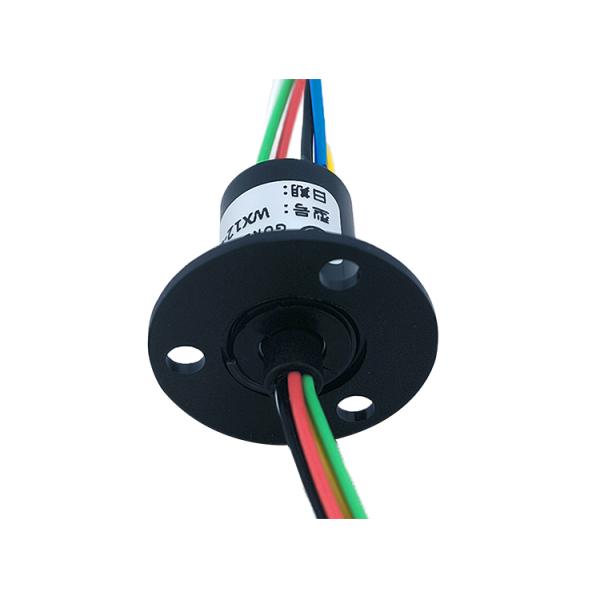

F-WX12-6P05 low-power rotary cap-type slip ring Product images
F-WX12-6P05 low-power rotary cap-type slip ring application
F-WX12-6P05 low current rotating conductive ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
