25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion

Name: 25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
Brand: GuRen
Price: 19 USD

China 25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion wholesale

Brand Name : GuRen

Model Number : W1M25S-D

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Use current : ≤25A

Peak current : 30A

Sealing layers : 2 inner layers + 1 outer layer

Guide column material : Copper + Nickel Silver

Stud : M5

Speed : 1800rpm

Contact Now

W1M25S-D electroplating slip ring adopts a three-layer protection structure and can withstand spraying of mist, electroplating liquid, and corrosive liquid. It is a liquid slip ring designed and developed for the electroplating/electrolysis equipment industry.

W1M25S-D electroplating slip ring Product features

1. Zero-loss conduction (<1mΩ) extends the life of the equipment.
2. 1800RPM high-speed rotation, life span up to 100 million revolutions.
3. 2 layers of internal sealing + 1 layer of external special protection, three layers of protection can better adapt to complex use environments.

W1M25S-D electroplating slip ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

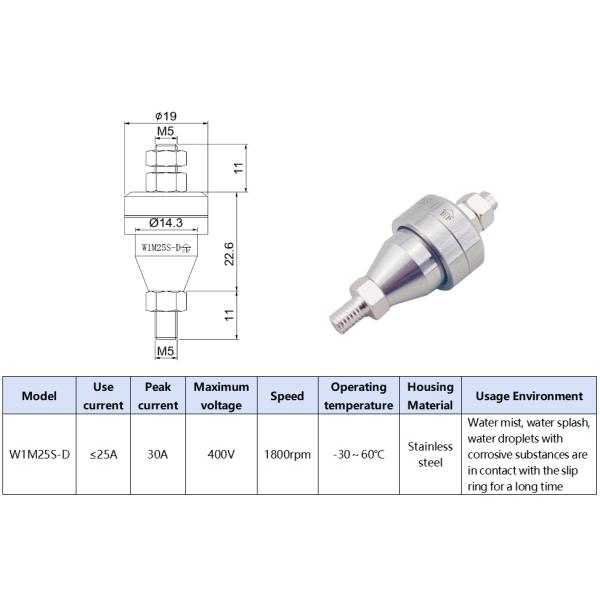

W1M25S-D electroplating slip ring Product size drawing

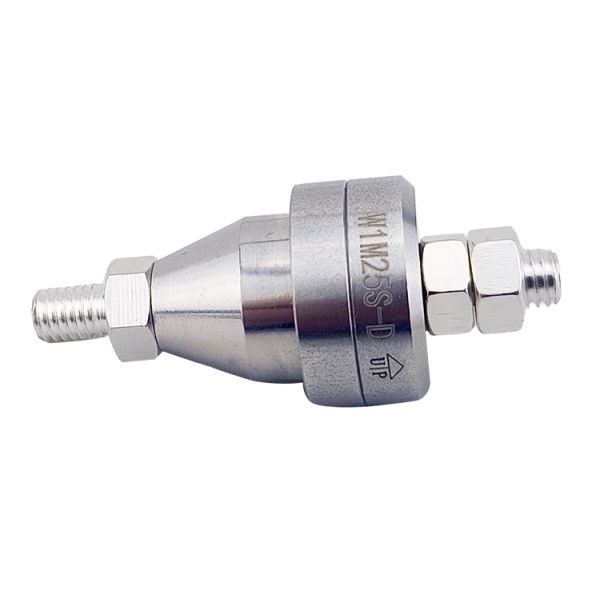

W1M25S-D electroplating slip ring Product Pictures

W1M25S-D electroplating slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
