W1M180S-D high current anti-corrosion slip ring, three-layer structure design, independent outer layer protection, can be used in various complex and harsh environments, 250A peak current, can be used for high-power machinery and equipment.
W1M180S-D high current anti-corrosion slip ring Product features
1. Patented liquid packaging technology makes the product more applicable to the installation environment.
2. Superconducting materials such as mercury and gallium alloy make the contact resistance smaller and the transmission more economical.
3. Stainless steel 316L shell makes the product more corrosion-resistant.
4. The friction of liquid rotation is extremely small, which increases the service life of the product.
W1M180S-D high current anti-corrosion slip ring Product parameters
| Parameter name | Parameter Value |
| Insulation resistance | >35 mΩ |
| Contact resistance | ＜1mΩ |
| Rated voltage | 0～400VDC/VAC |
| Maximum frequency | 200MHz |
| Working current | 10-1500rpm(See the specific model, can be customized) |
| Operating temperature | -30℃～+60℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Stainless steel/aluminum alloy |
| Rotational torque | 35-2000G·CM(See specific model) |

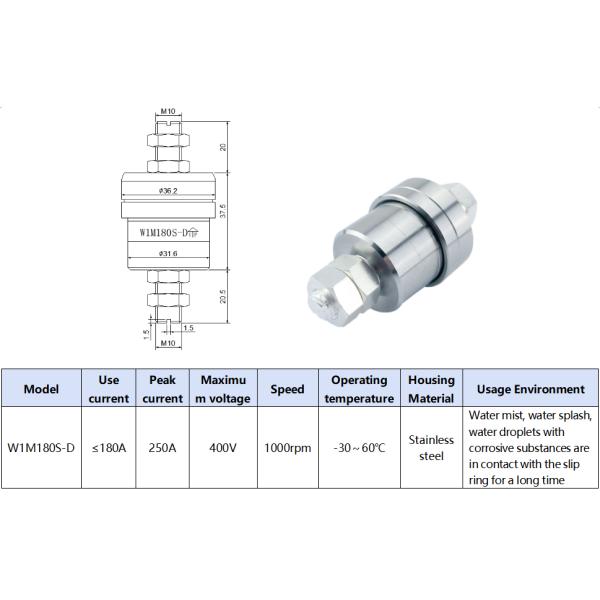

W1M180S-D high current anti-corrosion slip ring Product size drawing
W1M180S-D high current anti-corrosion slip ring Product Pictures
W1M180S-D high current anti-corrosion slip ring Application scenarios
Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
